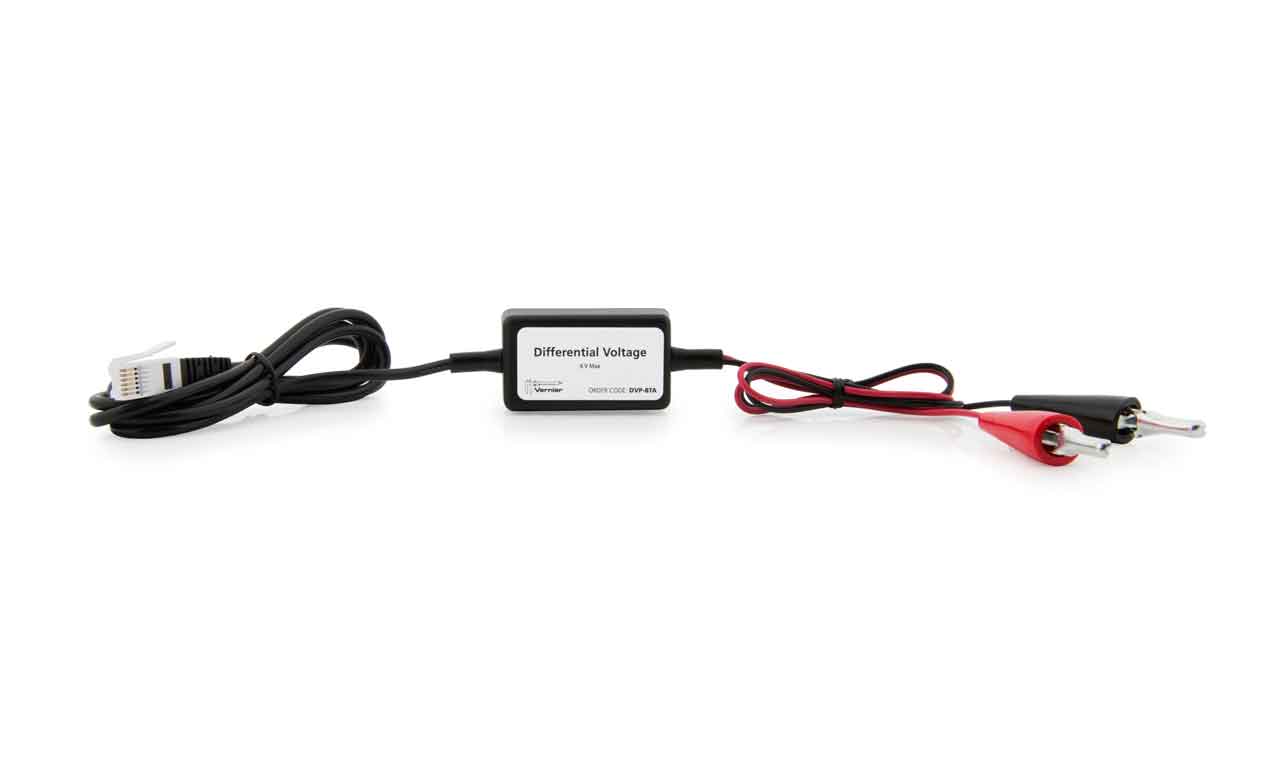

Differential Voltage Probe

Salta la galleria di immagini

CHF 112.10*

Contenuto: 1 Stück

Prezzi incl. IVA più costi di spedizione

tempi di consegna: generalmente circa 3 settimane
Codice prodotto: DVP-BTA

Info sui prodotti "Differential Voltage Probe"

The Differential Voltage Probe is designed for exploring the basic principles of electricity. Use this probe to measure voltages in low voltage AC and DC circuits.

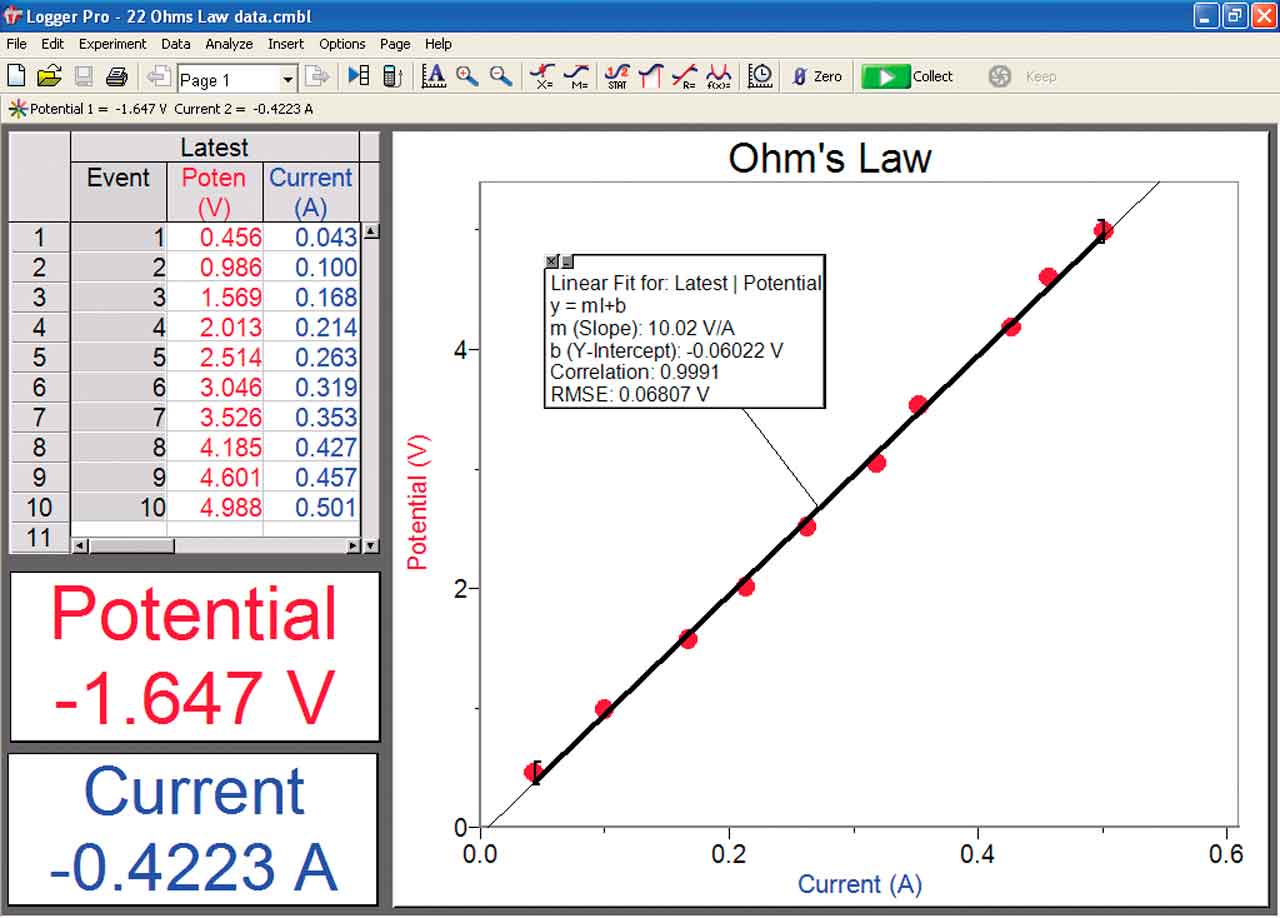

With a range of ±6.0 V, this system is ideal for use in “battery and bulb” circuits. Use it with the Current Probe (DCP-BTA) to explore Ohm’s law, phase relationships in reactive components, and much more. Use multiple Differential Voltage Probes to explore series and parallel circuits.

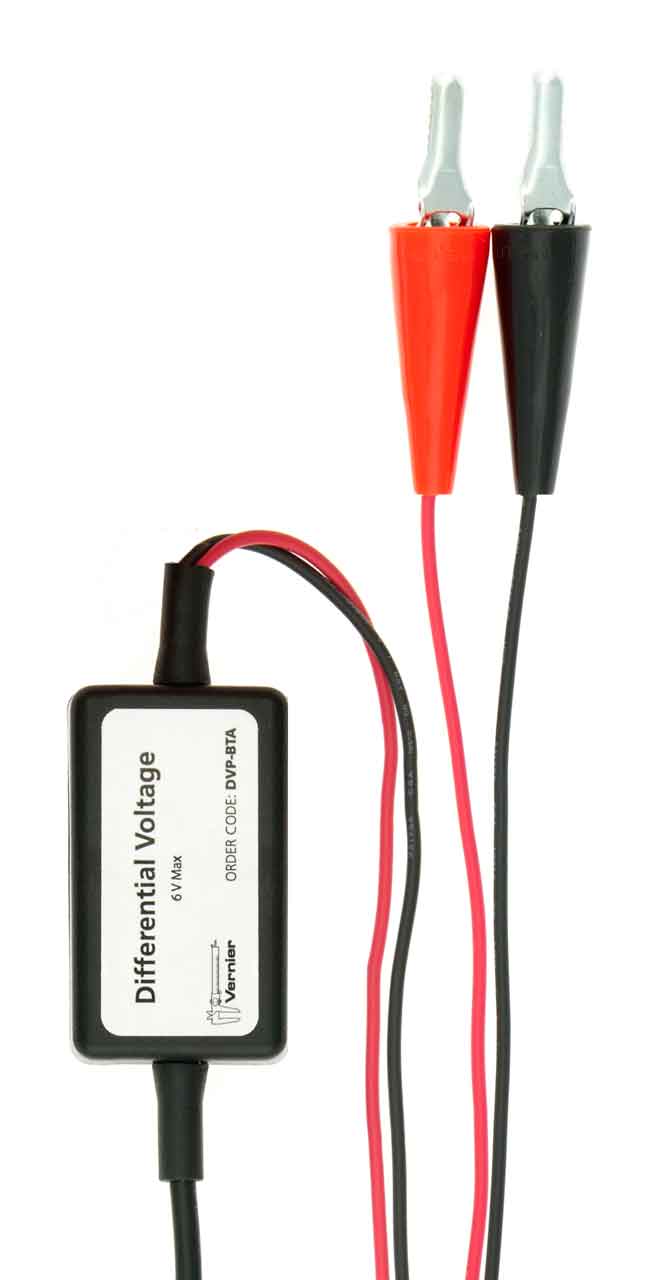

The Differential Voltage Probe reports the potential difference between the red and black leads. For example, if the black terminal is attached to something that is 2 V above ground, and the red to something that is 3 V below ground, it will report -5 V. The Differential Voltage Probe is the preferred voltage sensor in cases where more than one voltage sensor will be used in the same circuit.

  • Input voltage range: ±6.0 V
  • Maximum voltage on any input: ±10 V
  • Input Impedance (to ground): 10 M Ω
  • Differential Impedance: >20 M Ω
  • Typical Resolution: 3.1 mV

user manual

Bildungsstufe: Scuole medie superiori e professionali
Fach: Vernier, fisica
