Tris-Compatible Flat pH Sensor

Salta la galleria di immagini
PH Sensor
PH Sensor

CHF 366.90*

Contenuto: 1 Stück

Prezzi incl. IVA più costi di spedizione

tempi di consegna: generalmente circa 3 settimane
Codice prodotto: FPH-BTA

Info sui prodotti "Tris-Compatible Flat pH Sensor"

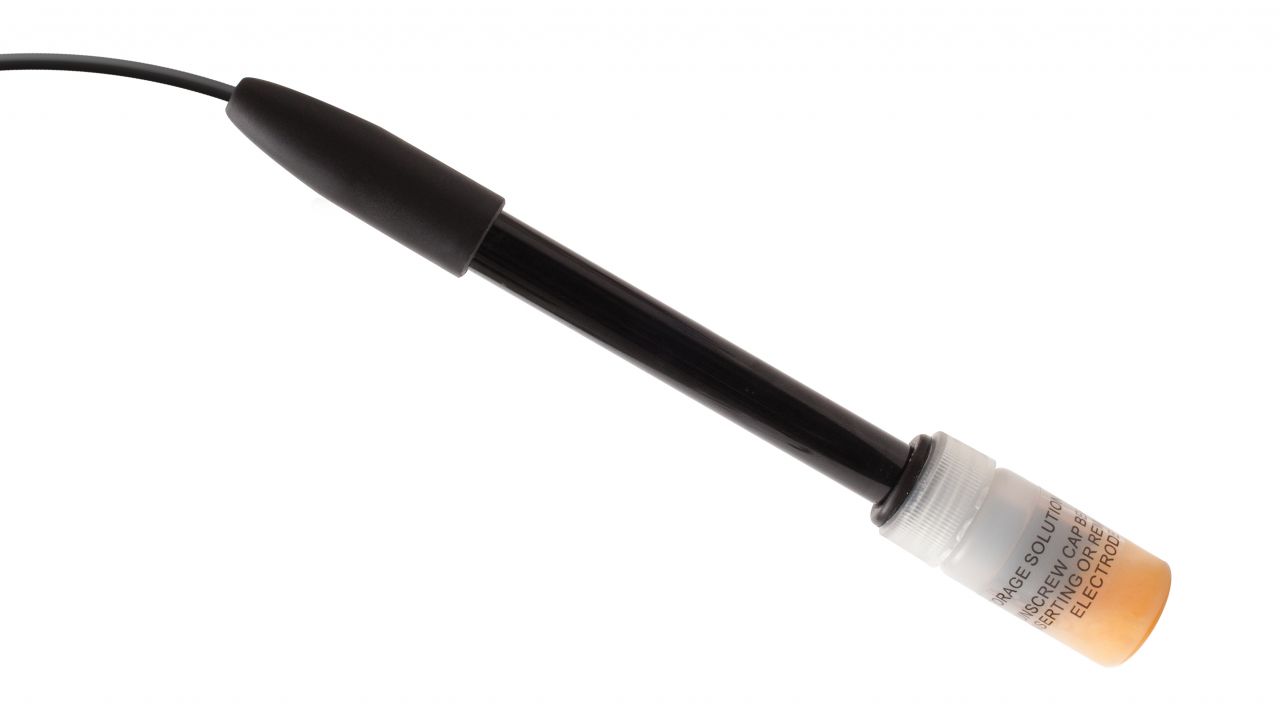

Use the Tris-Compatible Flat pH Sensor to measure the pH of a solution or semisolid, such as food or soil.

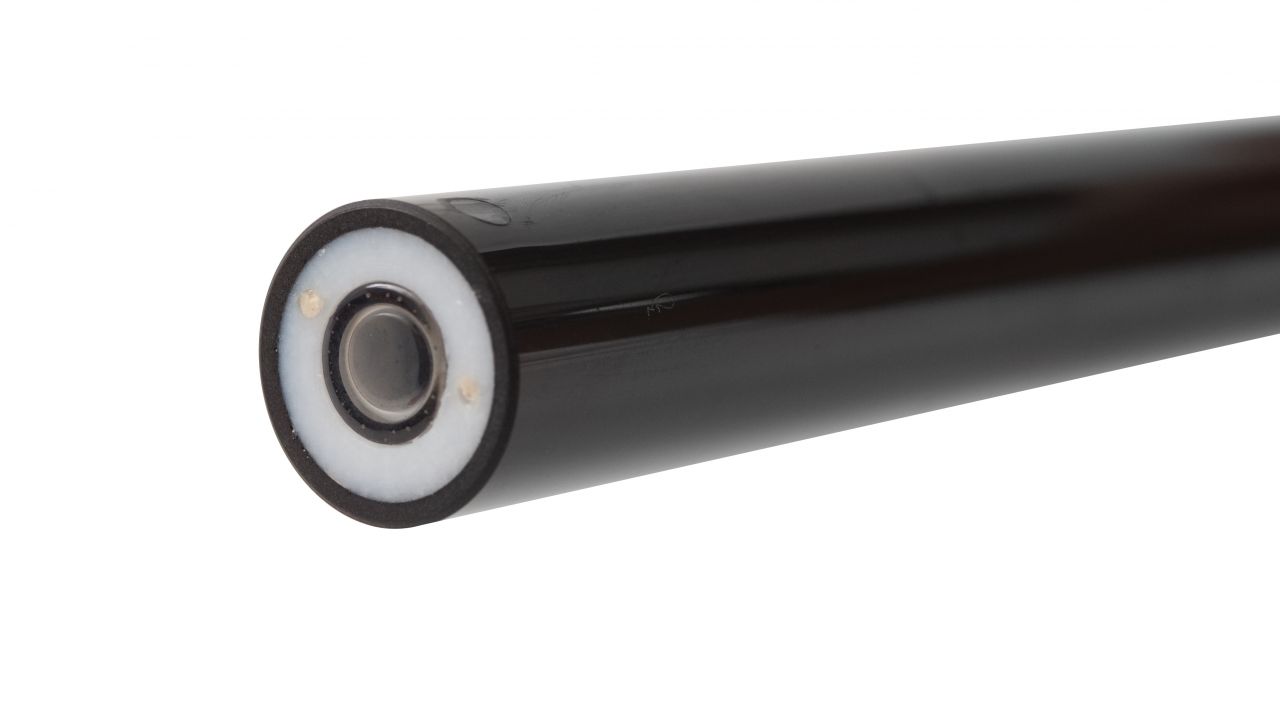

The Tris-Compatible Flat pH Sensor is a highly versatile sensor. Because the glass membrane is flat instead of a bulb, it is more durable, easier to clean, and allows for flat surface measurements or smaller sample sizes. It features a sealed, gel-filled, double-junction electrode, making it compatible with Tris buffers and solutions containing proteins or sulfides. The flat glass shape also makes it useful for measuring the pH of semisolids such as food or soil slurries.

Range:
pH 0–14

User manual

Bildungsstufe: Scuola media, Scuole medie superiori e professionali
Fach: Vernier, chimica

0 di 0 valutazioni

Formula una valutazione!

Condividi le tue esperienze con il prodotto con altri clienti.

Salta la galleria dei prodotti

Accessory Items

PH Storage Solution
pH Storage Solution
This is a 500 mL bottle of the pH Storage Solution. Use it as needed to replace spilled or contaminated solution.

CHF 59.10*
Microstirrer MSTIR
Microstirrer
When Vernier introduced the new Drop Counter, they decided to include a Vernier Microstirrer to enhance stirring. Since then, they've had many requests to have this as a separate product. The Microstirrer takes the place of the stirring bar that is typically used with a laboratory magnetic stirrer. The new Vernier Microstirrer easily attaches to the end of a pH Sensor, Conductivity Probe, Dissolved Oxygen Probe or Ion-Selective Electrode. When the magnetic stirrer plate (required, but not included) is turned on, its magnetic field turns the paddle wheel of the Microstirrer, resulting in enhanced stirring near the electrode tip. The Microstirrer works with any magnetic stirrer.

CHF 18.30*
Storage Solution Bottles (5)
Storage Solution Bottles (5)
Si tratta delle stesse bottiglie in cui vengono spediti i sensori di pH e ORP. Utilizzatele per realizzare mini-bicchieri da laboratorio per le nostre titolazioni su microscala o semplicemente per sostituire la bottiglia di conservazione.

CHF 20.30*
pH Buffer Capsules Kit
pH Buffer Capsules Kit
The pH Buffer Capsules Kit is a convenient set of three vials containing capsules to make pH 4, pH 7, and pH 10 buffer standards for calibrating pH sensors. Included with the set is one vial of Hydrion Color Key Buffer Preservative. Each vial contains 10 capsules, each of which produces 100 mL of solution when mixed with DI water. Add three drops of the buffer preservative to 100 mL of your buffer solution to prolong the shelf life. Hydrion Color Key Buffer Preservative is a combination mold inhibitor and universal indicator for color coding the buffer solutions: orange for pH 4, green for pH 7, and blue for pH 10. What’s included with the pH Buffer Capsule Kit: (10) pH 4 – Orange (10) pH 7 – Green (10) pH 10 – Blue Color Key Buffer Preservative Solution preparation instructions Safety Data Sheets

CHF 79.50*
Electrode Support
Electrode Support
The Vernier Electrode Support connects to all standard ring-stand posts to keep sensors firmly in place during an experiment. The Electrode Support is a great complement to the Vernier Stir Station, as well as a perfect holder for many sensors. It is built to connect to all standard ring-stand posts; its large-handled locking nut keeps your sensors firmly in place. The larger opening (13 mm in diameter) is perfect for our pH, ISE, Conductivity and ORP sensors. The smaller opening (5 mm) is designed to hold our Stainless Steel Temperature Probe or the Vernier Go!Temp. The clamp end makes connecting to ring stands easy, accommodating post diameters between ~0.5 and 1 cm. The grooves on the Electrode Support to hold the wire leads for electroplating or electrolysis experiments.

CHF 20.30*
Salta la galleria dei prodotti

Similar Items

pH Sensor
pH Sensor
Utilizzate il sensore di pH proprio come fareste con un pHmetro tradizionale, con i vantaggi aggiuntivi della raccolta automatica dei dati, della creazione di grafici e dell'analisi dei dati. Le attività tipiche che utilizzano il nostro sensore di pH includono: Titolazioni acido-base Studi sugli acidi e le basi per uso domestico Monitoraggio delle variazioni di pH durante reazioni chimiche o in acquario come risultato della fotosintesi Indagini sulle piogge acide e sui tamponi Analisi della qualità delle acque di torrenti e laghi Se state studiando tamponi Tris o semisolidi di questo tipo, prendete in considerazione il sensore di pH piatto Vernier Tris-Compatible.

CHF 254.80*
Go Direct pH Sensor
Go Direct™ pH Sensor
The Go Direct pH Sensor is a general-purpose pH sensor used to monitor pH of aqueous solutions. It directly connects wirelessly via Bluetooth® or wired via USB to your platform. The Go Direct pH Sensor is an important and versatile sensor for lab and field activities alike. It gives students the freedom to explore pH without the inconvenience of wires—no more spilled solutions or dangling wires. The Go Direct pH transmits live readings and captures data in real-time. The Go Direct pH Sensor can be used in a variety of experiments: Conduct acid-base titrations. Monitor pH change during chemical reactions. Test the pH and alkalinity of bodies of water. Investigate household acids and bases. This sensor is comprised of a pH electrode connected to a Go Direct Electrode Amplifier via a BNC connector. This design enables you to use the Go Direct Electrode Amplifier with other Vernier electrodes, such as the Flat pH Electrode, ORP Electrode, ISE electrode, or a third-party electrode. Specification: pH range: 0–14 Type: Sealed, gel-filled, epoxy body, Ag/AgCl reference Shaft diameter: 12 mm OD Storage solution: pH-4/KCl solution (10 g KCl in 100 mL buffer pH-4 solution) Connections: Wireless: Bluetooth Wired: USB Included: Go Direct pH (includes Go Direct Electrode Amplifier) Micro USB Cable Quick-start guide

CHF 242.60*
GDX-FPH
Go Direct® Tris-Compatible Flat pH
Der Go Direct Tris-kompatible pH-Sensor mit flacher Elektrode ist ein äußerst vielseitiger Sensor. Da die Glasmembran anstelle einer Kugel flach ist, ist sie haltbarer, leichter zu reinigen und ermöglicht flache Oberflächenmessungen oder kleinere Probengrößen. Er verfügt über eine versiegelte, gelgefüllte Doppelkontaktelektrode, die es kompatibel mit Tris-Puffern und Lösungen mit Proteinen oder Sulfiden macht. Die flache Glasform ermöglicht die Messung des pH-Wertes von pastosen und halbfesten  Stoffen wie Lebensmittel oder Bodenschlämmen. Technische Daten Messbereich: pH 0-14  Elektroden-Typ: Doppelter Anschluss, versiegelt, gelgefüllt, Ag/AgCl-Referenz, Polycarbonatgehäuse Membranform: Flachglas Pufferlösung: pH 4/KCl-Lösung (10 g KCl in 100 mL Puffer pH-4-Lösung) Temperaturbereich: 0- 100ºC (Messwerte nicht kompensiert) Außendurchmesser des Fühlers: 12 mm Impedanz: ~20 kΩ bei 25ºC Ansprechzeit: 98% des Endwertes in 30 s bei 25ºC Konnektivität Kabellos: Bluetooth Drahtgebunden: USB

CHF 364.90*
ORP Sensor
ORP Sensor
The Oxidation-Reduction Potential (ORP) Sensor measures the ability of a solution to act as an oxidizing or reducing agent. Use the ORP Sensor to measure the oxidizing ability of chlorine in swimming pools or to determine when the equivalence point has been reached in an oxidation-reduction reaction. Type:Sealed, gel-filled, epoxy body, Ag/AgCl reference Storage solution:pH-4/KCl solution (10 g KCl in 100 mL buffer pH-4 solution) Redox potential range:-450 to +1100 mV User manual

CHF 285.40*
Go Direct® Glass-Body pH Sensor
Go Direct® Glass-Body pH Sensor
Description This high-quality glass body pH sensor can be used in non-aqueous solutions and solutions that contain organic solvents, strong acids, or strong bases. The electrode features a sealed, gel-filled Ag-AgCl combination reference electrode and uses a BNC connector.  Specifications pH range: 0–14 Type: Glass shaft, sealed combination electrode with Ag/AgCl reference Temperature range: 0–80°C (readings not compensated) Accuracy ±0.2 pH units (factory calibration) ±0.05 pH units (user calibration) Response time: 2 s (to 90% of full reading in aqueous buffer) 5 s (to 90% of full reading in 50% acetonitrile) Shaft diameter: 12 mm OD Shaft material: glass

CHF 344.50*
Go Direct® pH BNC Electrode
Go Direct® pH BNC Electrode
Die Go Direct pH BNC-Elektrode ist eine gelgefüllte pH-Kombinationselektrode für Messungen im pH-Bereich von 0 bis 14. Ein Polycarbonat-Körper, der sich unterhalb der Glassensensorlampe der Elektrode erstreckt, macht diese Sonde ideal für die Anforderungen eines naturwissenschaftlichen Unterrichts auf Oberstufe, Gymnasiums- oder Universitätsniveau oder für Messungen in der Umwelt. Die gelgefüllte Referenzhalbzelle ist versiegelt – sie muss nie nachgefüllt werden. Spezifikationen Typ: Versiegelter, gel-gefüllter Polycarbonat-Körper, Ag/AgCl Reaktionszeit: 90% des Endwertes in 1 Sekunde Temperaturbereich: 5 bis 80°C (Messwerte nicht kompensiert) 12 mm Aussendurchmesser Bereich: pH-Wert 0–14 Isopotentialer pH-Wert: pH 7 (Punkt, an dem die Temperatur keinen Einfluss auf die Leistung hat) BNC-Anschluss

CHF 101.90*
