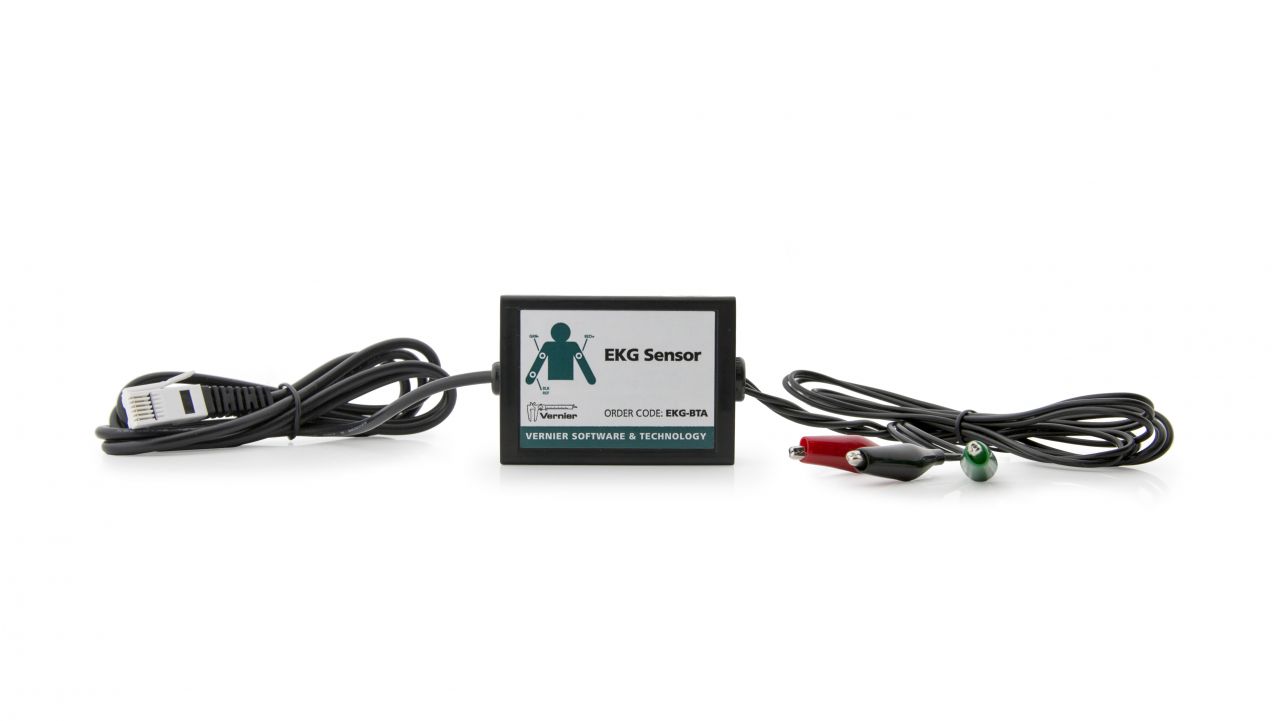

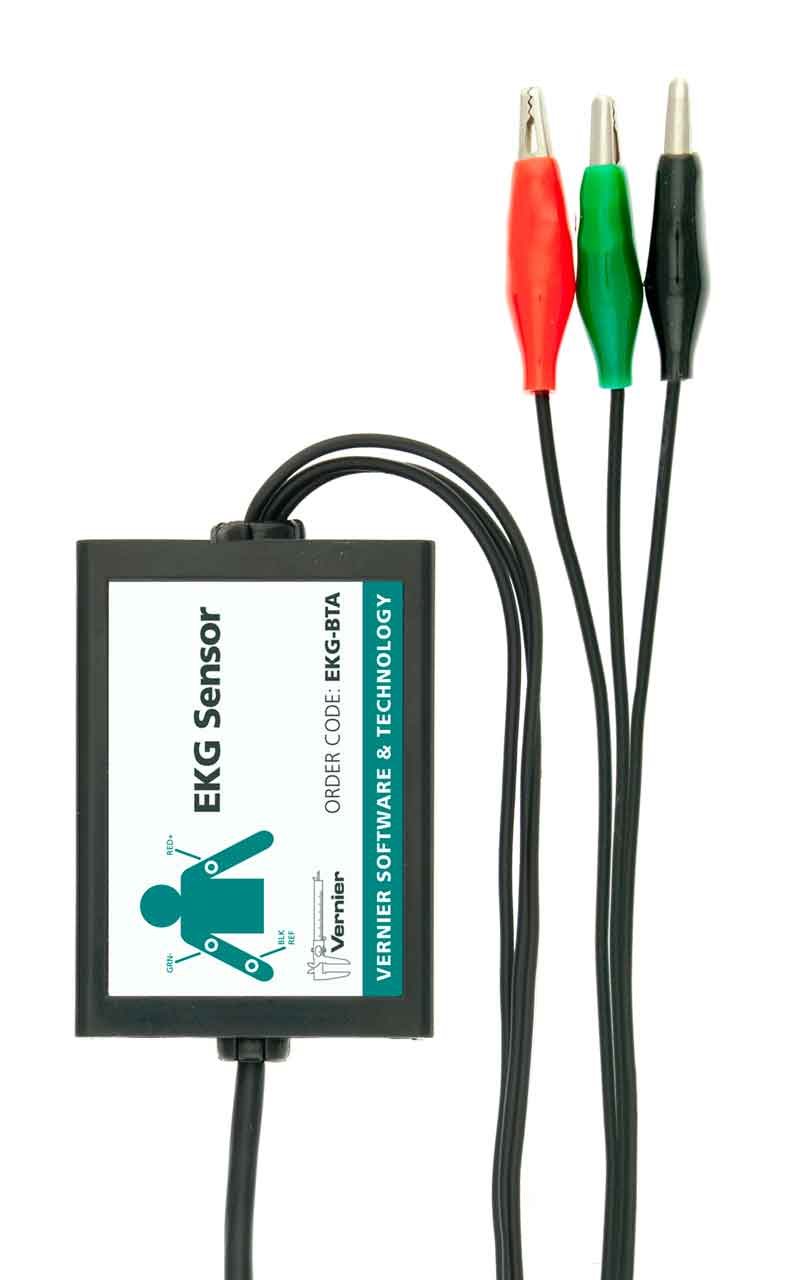

EKG Sensor

CHF 387.30*

Content: 1 Stück

delivery time: usually around 3 weeks

Product number: EKG-BTA

Product information "EKG Sensor"

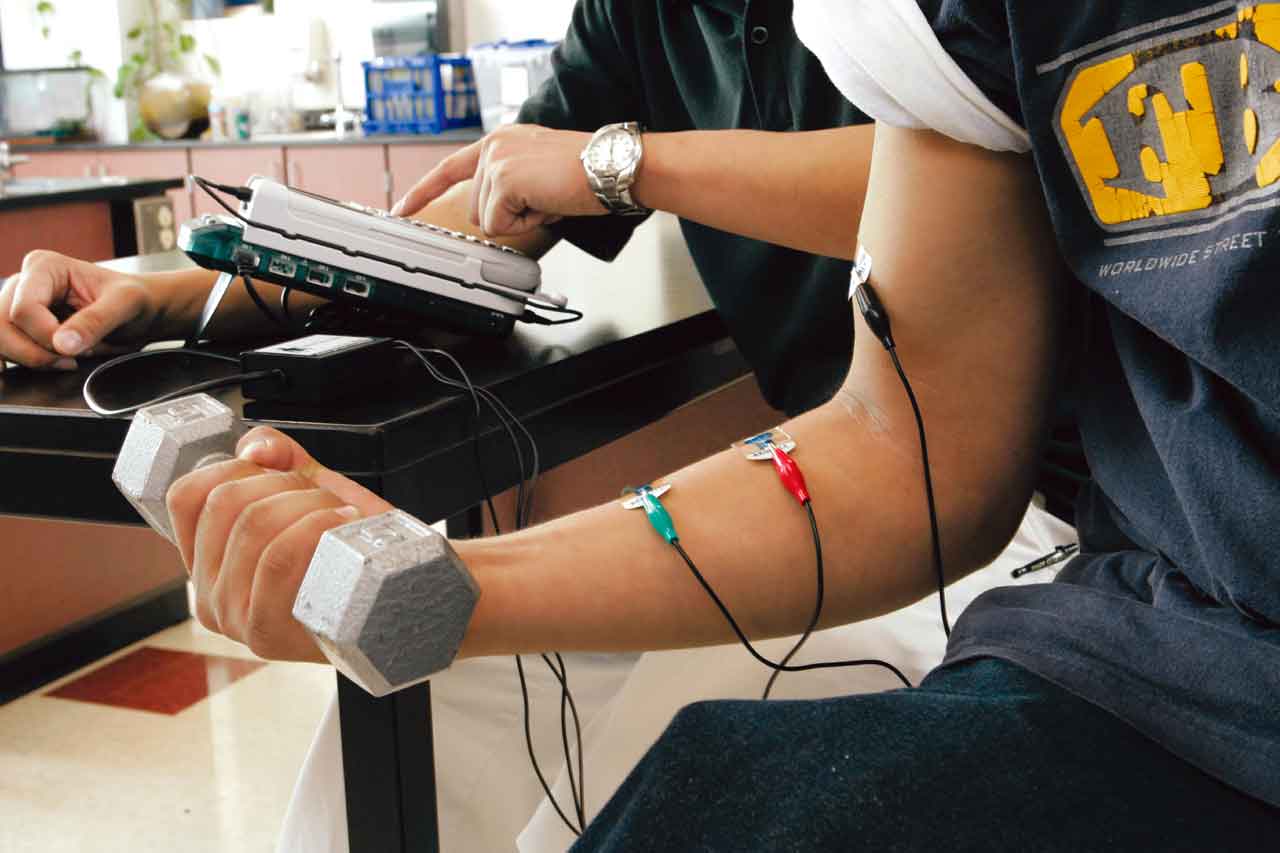

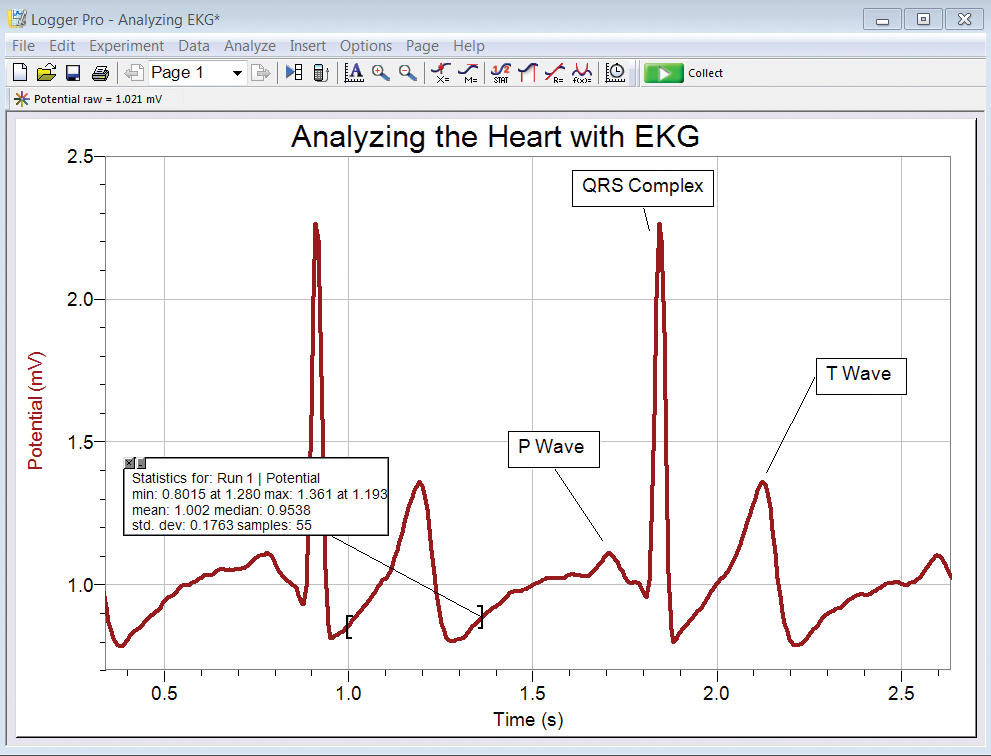

The EKG Sensor measures electrical signals produced during muscle contractions, and can be used to make standard 3-lead EKG tracings or surface EMG recordings.

Specifications

Offset: ~1.00 V (±0.3 V)
Gain: 1 mV body potential / 1 V sensor output

What's included

Vernier EKG Sensor
A package of 100 disposable electrodes

User Manual - EKG-BTA

Bildungsstufe:	Diploma/High School, Diploma/ Vocational/ Uni, Middle years
DataLogger Schnittstellen:	Arduino, CBL2, EZ-LINK, GO-LINK, GO Wireless Link, LabCradle, LabPro, LabQuest, Raspberry Pi, SensorDAQ, TI Innovator
Fach:	Biology, Sport, Vernier
Fachbereich:	Bewegung & Sport, Biologie
Hersteller:	Vernier
