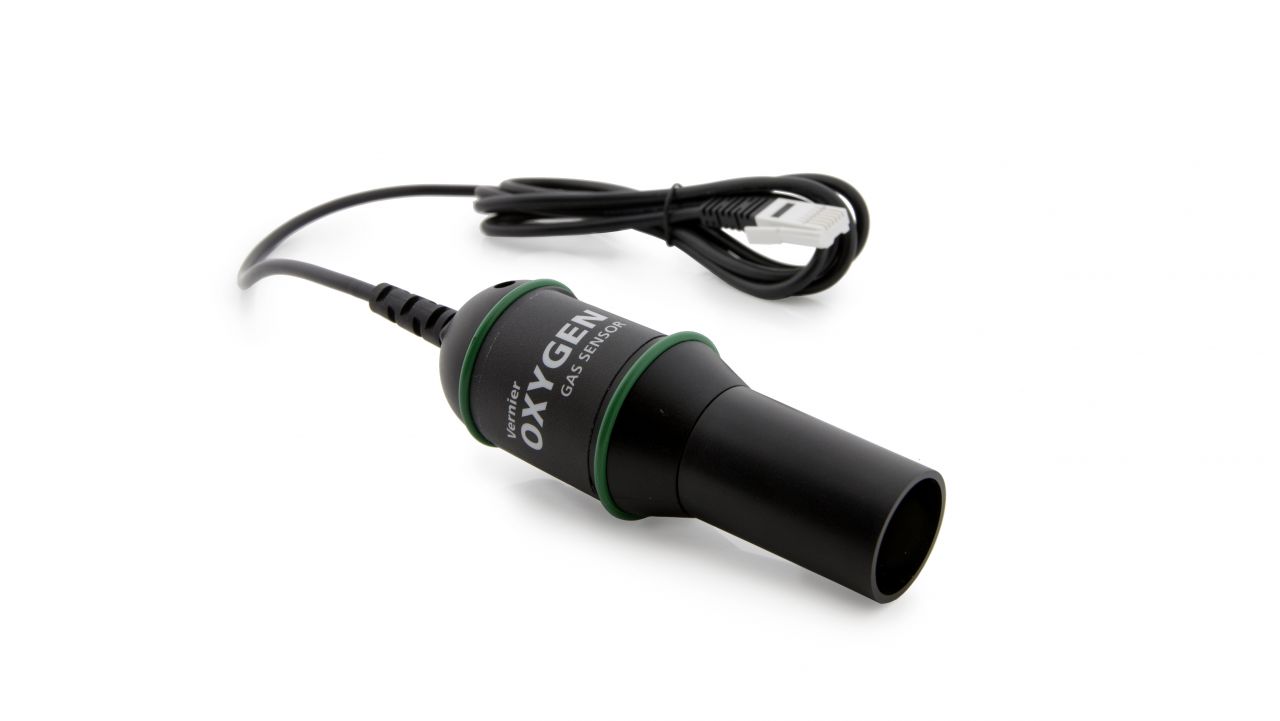

O2 Gas Sensor

CHF 489.20*

Content: 1 Stück

delivery time: usually around 3 weeks

Product number: O2-BTA

Product information "O2 Gas Sensor"

The O2 Gas Sensor can be used to monitor gaseous oxygen levels in a variety of biology and chemistry experiments. The sensor is intended for measuring gaseous, not aqueous, O2 concentration.

Specifications

Measurement Range: 0–27% (0-270 ppt)
Accuracy (@ Standard Pressure 760 mm Hg): +/- 1% O2
Typical Resolution: 0.01%
Response Time: 90% of final reading in ~12 seconds
Warm-Up Time: Less than 5 seconds
Pressure Effect:
Directly proportional
Vout = Vout (standard) x (P/1013)
Pressure range: 0.5 atm to 1.5 atm
Output Signal Range: 0.3 to 5 VDC; 2.7 to 3.8 VDC @ 21% O2
Output Impedance: 1 KΩ
Input Voltage: 5 VDC +/–0.25 VDC
Gas Sampling Mode: Diffusion
Normal Operating Temperature Range: 20°C to 30°C
Operating Temperature Range: 5 to 40°C (with calibration)
Operating Humidity Range: 0 to 95% RH
Storage Temperature Range: –20 to +60°C
Dimensions:
Sensor Tube: 45 mm length, 28 mm OD
Total length: 135 mm

What's included

Vernier O2 Gas Sensor

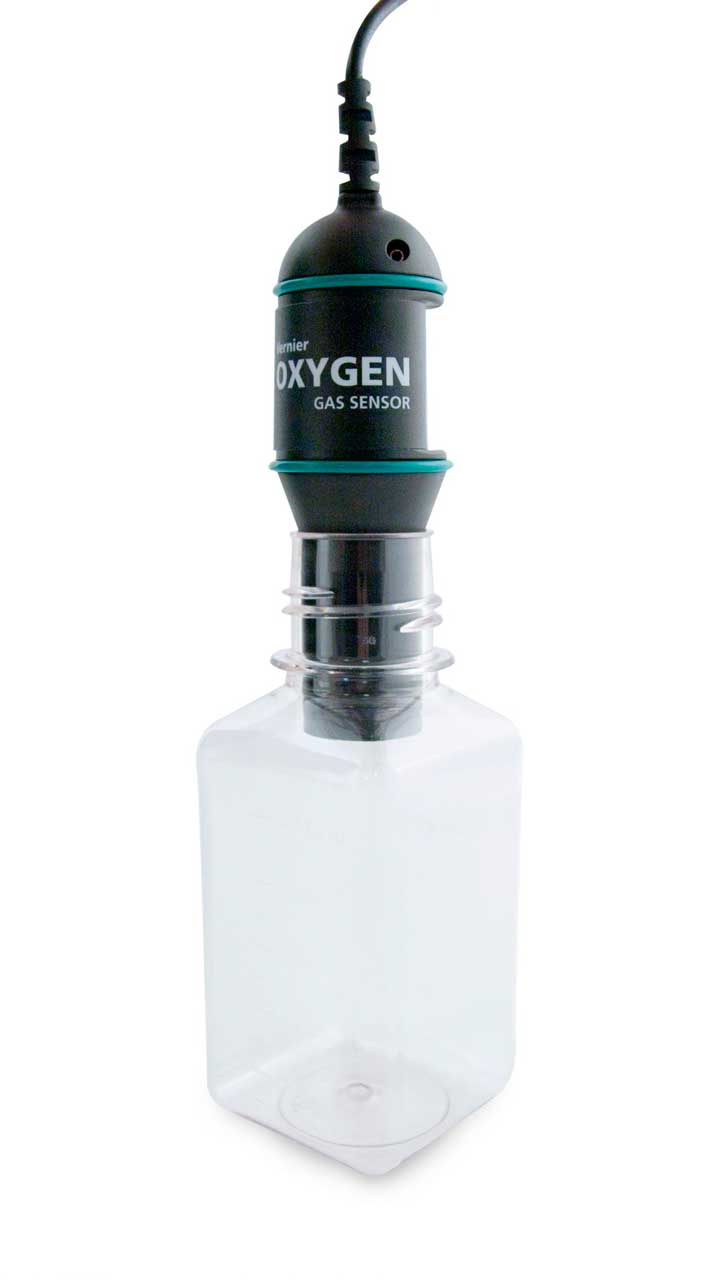

250 mL gas sampling bottle

User Manual - O2-BTA

Bildungsstufe:	Diploma/ Vocational/ Uni, Middle years
Fach:	Biology, Vernier, chemistry
